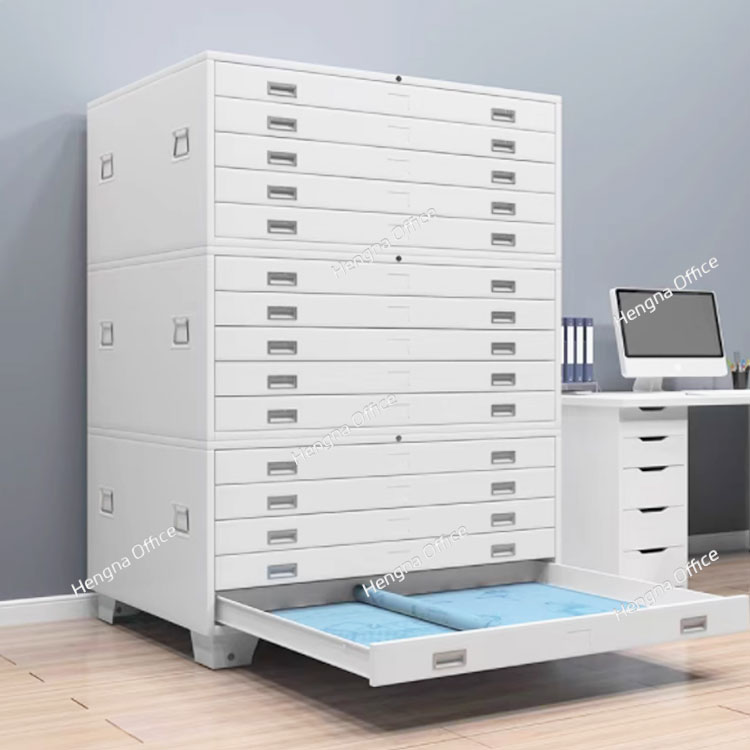

Industrial Steel Blueprint Cabinets | Track-Guided Drawers | A0/A1/A2 Sizes
Archival-Grade Drawing Preservation: Where Engineering Meets Precision
In architecture firms, engineering offices, and construction sites, curled or damaged blueprints cause costly errors. Our steel blueprint cabinet delivers military-grade protection with patented track-guided roller technology – engineered for standard drawings.
Industrial Steel Blueprint Cabinets | Track-Guided Drawers | A0/A1/A2 Sizes
Why Professionals Trust This System:
✅ Zero-Deformation Drawer Technology
• Track-guided rollers keep drawers perfectly horizontal when fully extended
• Reinforced steel frame prevents sagging
• Nylon wheel silencers ensure whisper-quiet operation
✅ Full-Size Drawing Compliance
- A0 Cabinet: 841×1189mm drawings
- A1 Cabinet: 594×841mm drawings
- A2 Cabinet: 420×594mm drawings
Custom sizes available for non-standard plans
✅ Industrial-Grade Steel Construction
cold-rolled steel body with anti-scratch coating. Reinforced corners withstand jobsite impacts.
✅ 30-Second Access System
Numbered drawers + front tag slots enable rapid retrieval. Dust-sealed gaps preserve ink integrity.
Technical Specifications:
▪ Drawer Type: Track-guided roller system (400mm extension)
▪ Capacity: 40-60 sheets per drawer (depending on paper weight)
▪ Finish: Epoxy powder coating (RAL 9005 black)
▪ Lifetime: 100,000 open/close cycles certified
Critical Industries:
• Civil Engineering Firms (bridge/road plans)
• Manufacturing Plant Layout Archives
• Construction Site Document Control
• University Architecture Departments
FAQ
Q1: Can drawers hold 200gsm thick cardstock plans?
A: Yes. Reinforced rollers support up to 120kg loads – equivalent to 80 sheets of 200gsm cardstock.
Q2: How to prevent steel corrosion in humid environments?
A: Epoxy coating resists 95% RH humidity. For coastal areas, optional stainless steel upgrade available.
Q3: Minimum clearance space for drawer extension?
A: Requires 450mm front clearance. Drawers lock at 400mm extension to prevent tipping.
